Choosing between a fixed speed vs VSD air compressor affects not only the purchase price, but also long-term energy consumption and operating cost.
A fixed speed compressor runs at a constant motor speed, while a VSD air compressor adjusts motor speed according to actual air demand. The right choice depends mainly on how stable your compressed air consumption is.
What Is a Fixed Speed Air Compressor?
A fixed speed air compressor operates at a constant speed when producing compressed air.
It is simple, reliable, and usually has a lower initial cost. It works best when factory air demand remains relatively stable and the compressor runs close to full load.
Main advantages:
- Lower purchase cost
- Simple control system
- Easy maintenance
- Reliable for stable air demand
However, when air consumption drops, the compressor may still consume electricity during unloaded operation.
What Is a VSD Air Compressor?
A VSD air compressor uses a variable speed drive to adjust motor speed based on real-time air demand.
When less air is required, the motor slows down. When demand increases, the compressor increases its output.
This helps reduce unnecessary energy consumption and maintain more stable system pressure.
Main advantages:
- Lower energy consumption under variable load
- Stable pressure control
- Reduced unloaded running
- Suitable for changing production demands

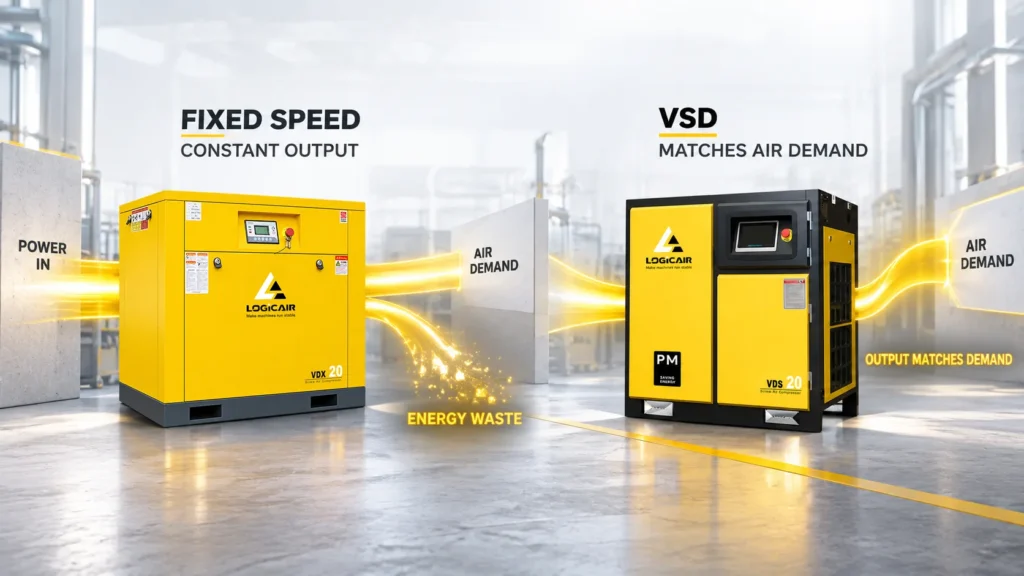

Fixed Speed vs VSD: Energy and Cost
The biggest difference is operating efficiency.
| Comparison | Fixed Speed | VSD |
|---|---|---|
| Initial Cost | Lower | Higher |
| Energy Efficiency | Best at stable full load | Best with changing demand |
| Pressure Control | Standard | More stable |
| Air Demand | Stable | Variable |
| Long-Term Energy Cost | Higher in variable-load use | Potentially lower |
A fixed speed compressor can be economical when demand is constant.
A VSD compressor is often more energy efficient when air consumption changes throughout the day. For factories operating compressors for long hours, lower electricity consumption can help offset the higher initial investment.

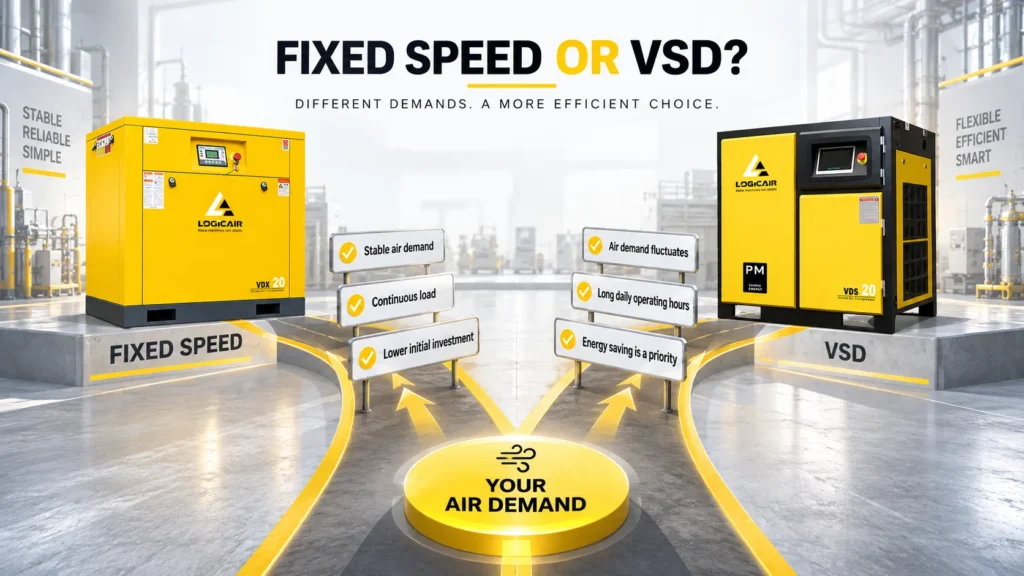

Which One Should You Choose?
Choose a fixed speed compressor if:
- Air demand is stable
- The compressor operates close to full load
- Initial investment is a priority
Choose a VSD air compressor if:
- Air demand changes frequently
- Different machines operate at different times
- Energy saving is important
- The compressor runs for many hours each day
VSD compressors are commonly suitable for applications such as laser cutting, CNC machining, packaging, woodworking, metal fabrication, and general manufacturing.
Fixed Speed + VSD Combination
For larger compressed air systems, using both technologies can also be effective.
A fixed speed compressor can provide the base air supply, while a VSD compressor adjusts output to handle demand fluctuations.
This configuration can improve energy efficiency while maintaining stable compressed air pressure.
Conclusion
There is no single best choice for every factory.
A fixed speed air compressor is ideal for stable and predictable air demand, while a VSD air compressor is better suited to fluctuating demand and energy-saving applications.
LOGICAIR provides both fixed speed and PM VSD screw air compressor solutions. Contact us with your required pressure, airflow, operating hours, and application, and we can recommend a suitable compressed air system.
